| Specification | |
|---|---|

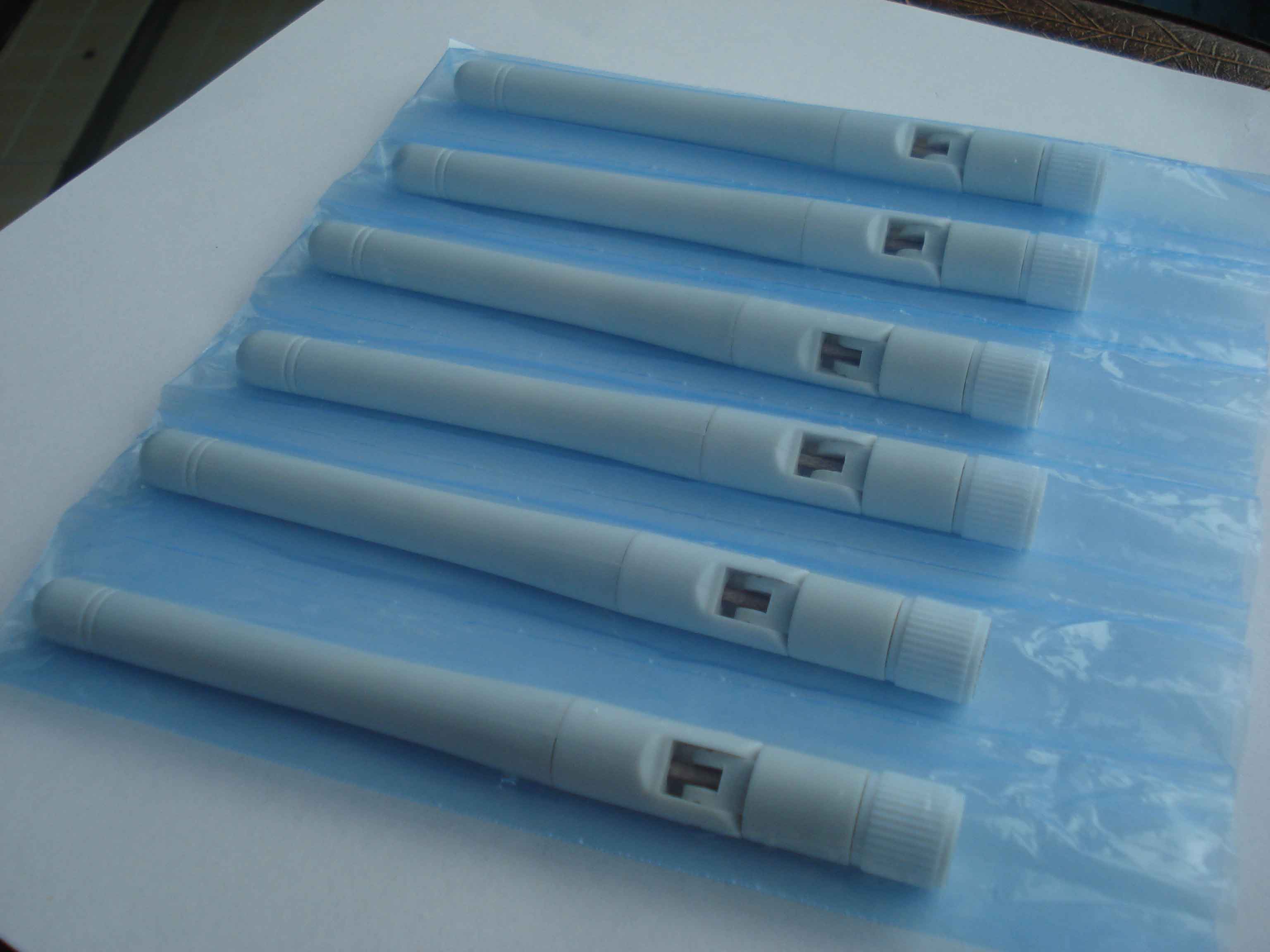

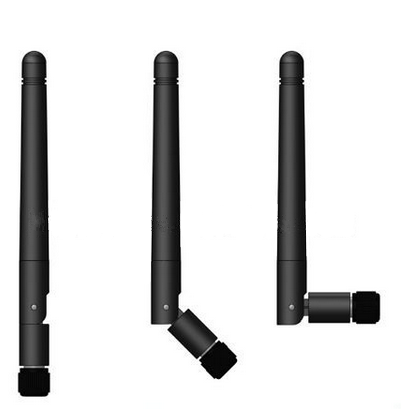

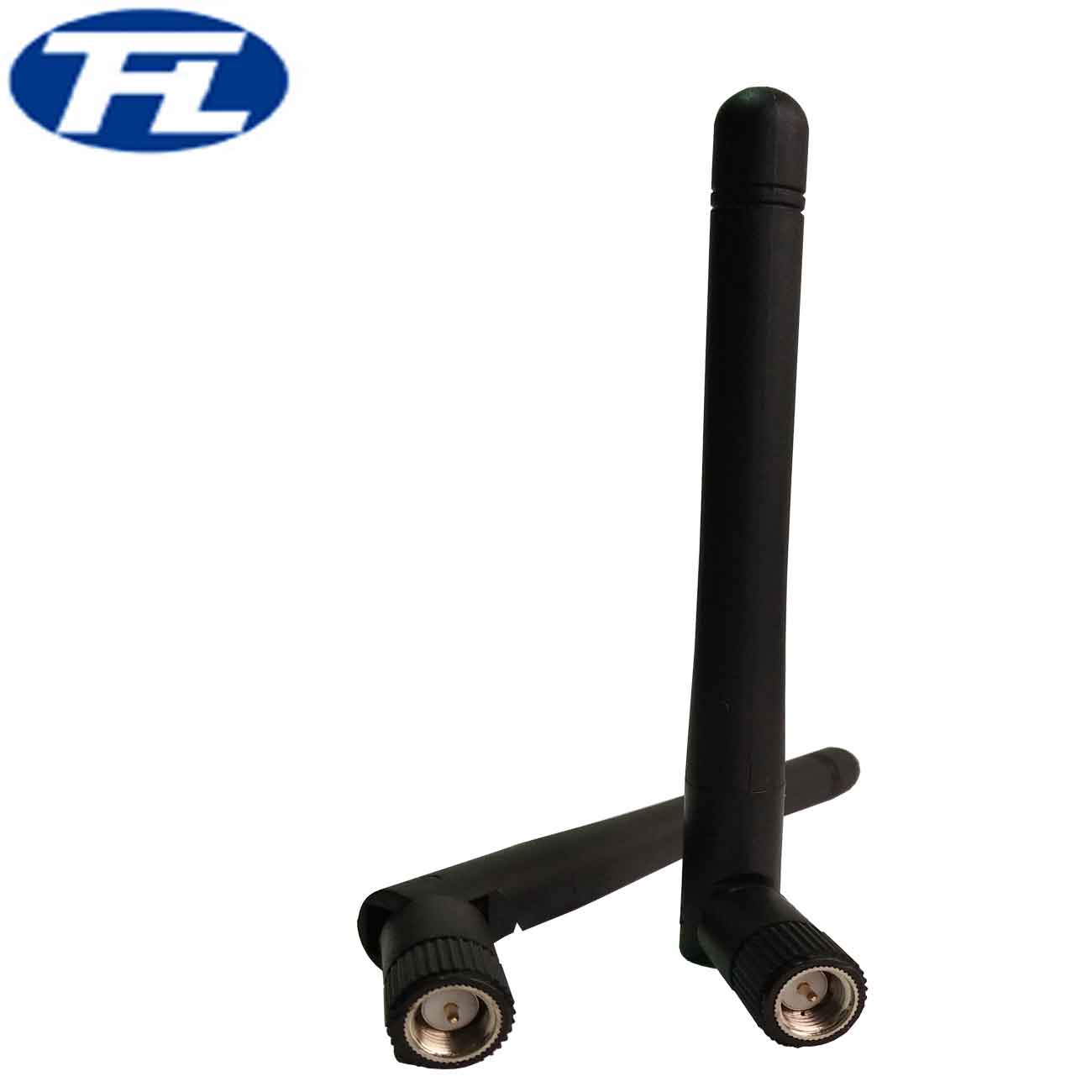

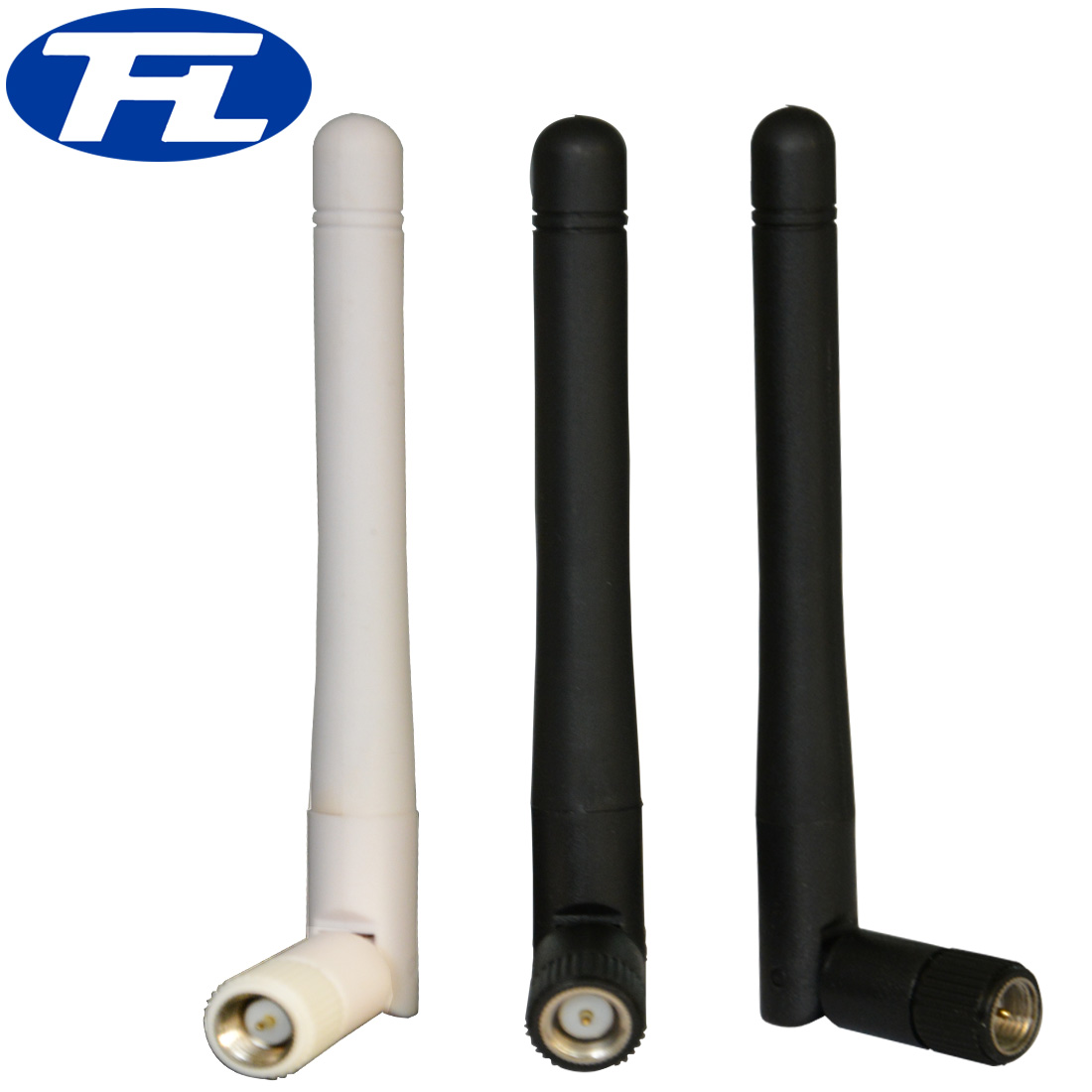

| 1) Wi-Fi Antenna | |
| Center Frequency | 2400-2500 MHz |
| Band Width | 100 MHz |
| Impedance | 50 ohm |
| V.S.W.R | 2.0 : 1 |
| Gain | 2~3 dBi |
| Power | 50 W |
| Polarization Type | Vertical or Horizontal |
| 2) Mechanical | |
| Connector | SMA |
| Size | D10*108mm |
| Housing | Black |
| 3) Environmental | |
| Working Temp. | -40℃~+85℃ |
| Humidity | 55%~75%RH |
