| Specification | |
|---|---|
| 1)4G Antenna | |
| Frequency Range | 824~960/1710~2655MHz |
| V.S.W.R | ＜2.0 |
| Impendance | 50Ω |
| Typical Gain(w/o cable) | 3dBi |
| Polarization Type | Vertical or Horizonal |
| 2) Mechanical | |
| Cable | RG174, 3m or others |
| Connector | SMA/MCX/Fakra or others |
| Radome Material | ABS |
| Size | 115*22*4mm |

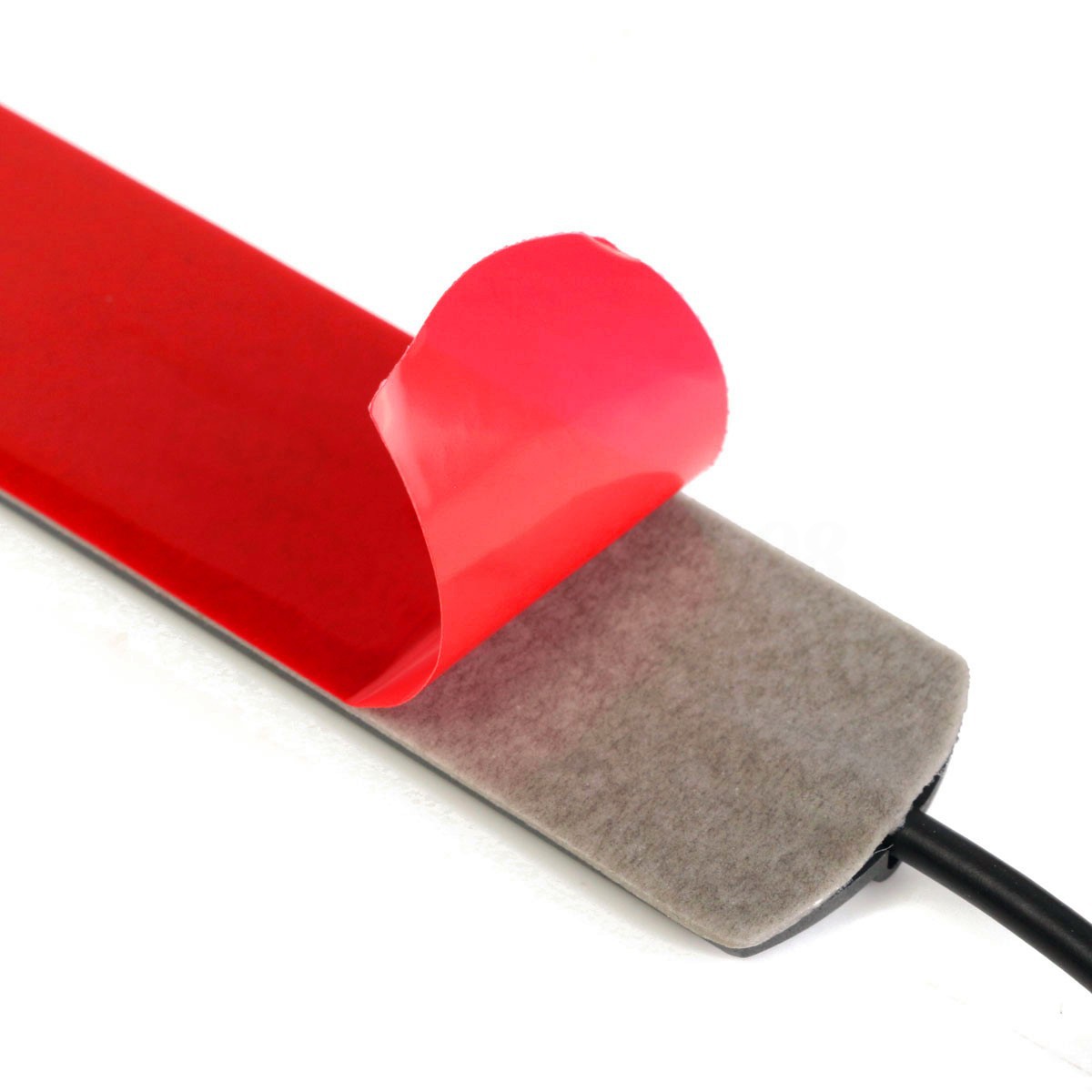

| Mounting Method | Adhesive |
| Housing | Black |
| 3) Environmental | |
| Operating Temperature | -40℃~+85℃ |
| Relative Humidity | Up to 95% |
| Vibration | 10 to 55Hz with 1.5mm amplitude 2hours |
| Environmentally Friendly | ROHS Compliant |
